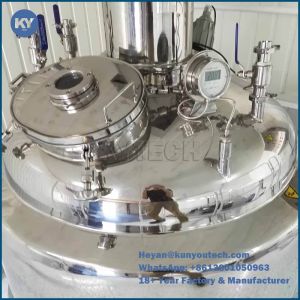

    304 SUS Stainless Steel Storage Tanks Three Layers Of Water Bath Heating 450L

    304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L
    Quick Detail
    Product NameGelatin Melting TankHeating typeWater-bath heating
    ApplicationPaintball /Soft capsule manufacturersModel450L
    Material304 SUS/316SUSCapacity650L
    Inspection Holecan be as your requirementMixterbottom/top
    Product Description

    The Series of gelatin reactor is the essential equipment in gelatin preparation.

    The Capacity is from 450L, to 1000L

    Main technical data

    Vacuum degree in the vessel: 0.02-0.09 Mpa.

    Working pressure in the vessel: 0.03-0.05 Mpa.

    Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.

    Working pressure in the jacket: 0.03-0.098 Mpa

    Working temperature in tank: 50-100 °C

    Conveyor granule: 30 CP

    Sealing parts and ring can used more than: 3,000 hours continuously.

    Insulating layer use: super-fine glass cotton.

    Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of: 1Cr18Ni9Ti stainless steel.

    Application

    It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.

    Specification
    Model450L
    Capacity(L)650
    Melting gelatin(L)100-450
    Heating area(M2)3.2
    Max degree of Vacuum(Mpa)0.09
    Max Temperature(℃)-100
    Motor Power (KW)4
    Stirring speed (r/min)50
    Dimension (mm)Φ1210X1880
    Competitive Advantage
    • Stainless steel construction, multi-layer stirrer.
    • Soft capsule /painball gelatin melting tank, heated by circulated hot water.
    • Water sealed vacuum pump is adopted.
    • Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
    • Typically designed paddle ensure agitating quickly and mixing uniformly.
    • It’s convenient in installation and cleaning.

    Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank
